Nakase, H. MD; Heimann, A. DVM; Kempski, O. MD PhD
Background and Purpose: The pathophysiology of sinus-vein thrombosis (SVT) in patients and experimental animals is still poorly understood. This study was designed to examine and further elucidate the pathophysiological sequence of events, especially the relationship between local and regional blood flow and hemoglobin oxygen saturation (HbSO2) detected at identical locations. The use of both parameters as outcome indicators should be compared.
Methods: SVT was induced by ligation of the superior sagittal sinus (SSS) and slow injection of kaolin-cephalin suspension into the SSS in rats. Regional cerebral blood flow (rCBF) was assessed by laser-Doppler flowmetry together with regional HbSO2, which was measured by a microspectrophotometric technique at 48 identical locations for 90 minutes after SVT using a scanning technique. Fluorescence angiography was performed before and 30 and 90 minutes after SVT induction. After 48 hours the animals were killed for histology.
Results: The fluorescence angiographic findings could divide animals into three groups: (1) group A, with a solitary SSS thrombus (n = 8); (2) group B, with a thrombosis of SSS and cortical veins (n = 10); (3) group C, animals that had undergone sham operation (n = 5). Decreases of rCBF and HbSO2 and brain damage were seen in group B but not in group A. The reduction of local HbSO2 preceded the flow decrease after sagittal sinus ligation but before thrombosis. Blood pressure in group A was found to be significantly higher after SVT than in groups B and C.
Conclusions: The brain with acute extension of a thrombus from the SSS into cortical veins experiences a critically reduced supply of blood and oxygen. CBF, local HbSO2, and repeated angiography can be helpful monitors for the early detection of critical conditions after SVT. Local HbSO2 has a greater sensitivity to predict outcome than lCBF. Moreover, therapies directed to improve perfusion pressure or reduce vascular resistance may open further therapeutic windows during SVT progression.
(Stroke. 1996;27:720-728.)
Key Words: cerebral blood flow, cerebral thrombosis, cerebral veins, microcirculation, rats
EMPHO = Erlangen micro-lightguide spectrophotometer
HbSO2 = hemoglobin oxygen saturation
lCBF = local cerebral blood flow
LD = laser-Doppler
rCBF = regional cerebral blood flow
SSS = superior sagittal sinus
SVT = sinus-vein thrombosis
After years of research on cerebral ischemia from arterial obstruction, growing attention has been paid recently to the study of cerebral injury subsequent to venous circulation disturbances. [1-7] SVT is increasingly recognized as a much more frequent neurological disorder than it was in earlier days. SVT is often misdiagnosed because of the wide spectrum of its clinical manifestations: the clinical symptoms as well as the prognosis of SVT observed in patients and animal experiments are quite variable, ranging from no symptom at all to severe venous infarction. Thrombosis of the SSS may be relatively innocuous, especially if only its anterior end is thrombosed. On the other hand, the prognosis of cerebral venous thrombosis accompanied by severe hemorrhagic infarction in patients is still rather poor, and its suitable treatment and prevention remain controversial. [8]
Recent publications on experimental SVT have well documented that SVT causes brain damage only if draining cortical veins are involved. [1-4,6,7] The monitoring of CBF has been useful for predictions of brain damage subsequent to SVT and cortical vein occlusion. [5,7] Now, in a next step, the relationship between local and regional CBF and HbSO2 detected at identical locations should be evaluated. The use of both parameters as outcome indicators should be compared.
There are various animal models for SVT, [1-7,9] but the rat model with a combination of SSS ligation and the injection of a thrombogenic material, kaolin-cephalin suspension (a reagent available for the partial thromboplastin time reaction), is currently best established. The model produces a clinically relevant SVT, not through simple mechanical obstruction but rather a true thrombotic process. It also permits long-term survival, which makes the long-term assessment of histological damage possible. Two recent SVT experiments using this model demonstrated that it regularly exhibits a dichotomy in histopathological findings that correlates well with changes in lCBF during the experiment and results in a similar percentage of animals (approximately 50%) with morphological manifestations after SVT induction. [2,7]
The goal of the present experiment was to investigate the pathophysiological changes occurring in the brain after SVT, especially the association of ischemia, local HbSO2, and subsequent outcome. To do so, rCBF was measured by LD flowmetry and local HbSO2 with a microspectrophotometric approach and a scanning technique. The advantages of the microspectrophotometric technique include the capability for continuous monitoring in living animals with minimal damage to the tissue. [10-13] Moreover, the new ``scanning'' technique, [14-17] which moves a probe attached to this system by a computer-controlled micromanipulator to multiple locations in a cranial window, provides lCBF recordings and corresponding local HbSO2 from identical locations. Additionally, this technique makes it possible to use the LD technique for the detection of low-flow areas [14] and to assess rCBF from these lCBF data. [17]
The present study was conducted according to the German animal protection legislation and was reviewed by the regional ethics committee (Bezirksregierung Rheinhessen-Pfalz, AZ 177-07/93120).
Twenty-three male Wistar rats (260 to 370 g body weight) were premedicated with 0.5 mg atropine. Anesthesia was introduced with ether and continued by intraperitoneal injection of chloral hydrate (36 mg/100 g body wt). During the experiments, spontaneous ventilation was maintained, and rectal temperature was controlled at 37 degrees C by means of a feedback-controlled homeothermic blanket control unit (Harvard). Polyethylene catheters were inserted into the tail artery and the right femoral vein under an operating microscope (OP-microscope; Zeiss). The arterial line served for continuous registration of arterial blood pressure via a pressure transducer (Gould 134615-50) and for blood gas analysis. PaO2, PaCO2, and arterial pH were measured with an ABL3 blood gas analyzer (Radiometer). The venous line was used for administration of fluid and drugs. Each rat was mounted on a stereotaxic frame (Stoelting). After a 2.0-cm midline skin incision was made, a cranial window (9 x 6 mm) was made between the coronal and lambdoid sutures bilaterally with a high-speed drill under the operating microscope. During the craniotomy, the drill tip was cooled continuously with physiological saline to avoid thermal injury to the cortex. The dura was left intact, and the SSS and bilateral parasagittal cortex were exposed Figure 1. Then, fluorescence angiography was performed for examining epicortical vessel structures. A 2% Na sup +-fluorescein solution (0.5 mL; E. Merck) was injected intravenously. A photomacroscope with magnification from times 5.8 to times 35.0 (M 420; Wild) furnished with a 50-W mercury lamp and fluorescence filter (I2; Leitz) was used for fluorescence angiography, which was carried out before and 30 and 90 minutes after induction of SVT. The images were recorded on videotape (HS-S5600E[RS], Mitsubishi), permitting a careful reevaluation. To minimize damage by fluorescence excitation, illumination of dura and underlying cortex was restricted to angiography.
lCBF was measured using a Vasomedics laser flow blood perfusion monitor (model BPM 403a) with a 0.8-mm needle probe. lCBF is expressed in LD units. The LD system used has a reproducibly low biological zero, [17] and with the scanning technique described below data from individual animals and locations may be compared. [7,14,16,17] The local HbSO2 in percent was measured with the EMPHO II SSK-BB (Bodenseewerk Geratetechnik GmbH). The EMPHO monitor consists of four modules: a light source, a micro-lightguide, the detector, and a computer. [18,19] Parallellized light from a xenon high-pressure lamp is transmitted to the tissue surface by a central fiber surrounded by a hexagon of six detecting fibers. Light transmitted by these detecting fibers passes a fast rotating interference band-pass filter disk (502 to 628 nm) and then illuminates a photomultiplier. The raw spectrum thus obtained is corrected on-line with the dark spectrum and with the spectrum obtained from excitation light reflected from a mirror at a set distance. [19] The response spectrum is used for the evaluation of the tissue spectra from which local HbSO2 is calculated. To do so, the spectra are digitized in 2-nm increments from 502 to 628 nm. The relative amounts of oxyhemoglobin and deoxyhemoglobin normalized for light scattering are estimated as parameters using an iterative best-fit procedure based on the theory of Kubelka and Munk. [20] These are relative concentrations because of light scattering, but they do permit calculation of the percentage of oxyhemoglobin saturation. [19,20]
lCBF and HbSO2 were measured at 48 (8 x 6) identical locations in a scanning procedure by means of a computercontrolled micromanipulator. Thus, the random registration of 48 individual measurements results in one scanning procedure with information from 48 different locations, each at a distance of 400 micro meter.
The SSS was ligated first rostrally and then caudally close to the confluens sinuum using 9-0 prolene sutures, without damage to the adjacent brain tissue. After lCBF and HbSO2 were scanned, a Hamilton microsyringe with a 27-gauge needle attached to a micromanipulator was used to puncture the SSS between the two sutured points just in front of the dorsal ligature. A kaolin-cephalin suspension (100 mu L, partial thromboplastin time reagent; Boehringer Mannheim) was injected into the SSS over 5 minutes in fractionated 10-mu L portions at 30-second intervals Figure 1.
Thereafter, the multiple scanning was repeated at identical coordinates every 15 minutes for 90 minutes. Subsequently, after the third fluorescence angiography the needle was removed without or with minor bleeding, the resected bone flap was repositioned, and the skin wounds were closed. The rats were returned to individual cages and allowed free access to water and food. Two days after the operation, clinical manifestations were observed, and the rats received an injection of 2.0% Evans blue solution (1 mL/kg). After 1 hour, the rats were submitted to perfusion fixation with 4% paraformaldehyde under general anesthesia with chloral hydrate. The brain was then removed from the skull. Coronal brain blocks from the parietal cortex were embedded in paraffin. Sections were prepared and stained with hematoxylin and eosin.
In addition, five rats served as sham-operated controls, which received only craniotomies without SSS ligation or injection of kaolin-cephalin.
Data are expressed as mean +/- SD for physiological variables and as mean value +/- SD of the median lCBF and HbSO2 from the 48 data sets from each rat. ANOVA for multiple comparison or the Mann-Whitney rank-sum test was used for between-group comparisons. Time sequences were evaluated by ANOVA followed by Dunnett's test for repeated measures. Statistical significance was accepted at an error probability of P < .05.
According to the pattern of the fluorescence angiography, which provided information on the quality of venous blood flow and the extension of the growing thrombus, animals could be divided into three groups: (1) group A, in which the SSS was occluded without any sign of cortical vein thrombosis (n = 8); (2) group B, in which the thrombus extended from the SSS into cortical veins (n = 10, Figure 2A and B); and (3) group C, animals that had undergone sham operation (n = 5). The third angiography regularly revealed a spotty extravasation of fluorescein in the parasagittal cortex in group B only.
Physiological variables showed no significant changes of blood gases (eg, PaO2, PaCO2, and pH) Table 1 before and after SVT induction or among the groups. Mean arterial blood pressure was not significantly changed by thrombosis induction and thereafter stayed at an approximately 15% higher level in group A compared with groups B and C (P < .05 from 15 to 90 minutes; Table 2).
The calculation of median rCBF values from the 48 locations in each animal demonstrated no change of rCBF in groups A and C comparing groups or estimated by ANOVA for repeated measures. In group B, rCBF significantly decreased after the injection of kaolincephalin suspension compared with group A (P < .01). The control rCBF value of group B was 44.2 +/- 13.9 LD units, and the maximal and highly significant drop was to 21.5 +/- 7.5 LD units by 15 minutes after SVT induction. Thereafter, a gradual incomplete recovery was found, with 29.9 +/- 11.7 LD units after 90 minutes Figure 3. In group C (sham operation), rCBF was 48.6 + - 9.7 LD units at the beginning and then remained constant, with 51.6 +/- 4.9 LD units at the end of the experiment.

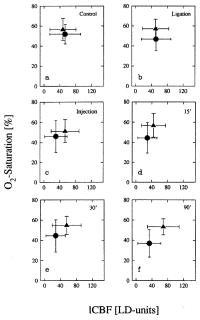

The median of the local HbSO2 values collected at the 48 locations in each animal revealed no difference of HbSO2 in groups A and C either between these groups or estimated by ANOVA for repeated measures. Under control conditions before SVT induction, group A had a regional HbSO2 of 56.2 +/- 9.1%; 90 minutes after SVT, it was measured at 52.5 +/- 5.1% Figure 4. In group C (sham operation), regional HbSO2 was 49.1 +/- 9.5% at the beginning and stayed at that level throughout the experiment, yielding 50.4 +/- 8.4% at the end. In group B, however, HbSO2 had already significantly decreased after the ligation of the SSS. Compared with group A, the decrease was significant after 45 minutes until the end of experiment (P < .05). The maximum drop was from 51.7 +/- 7.0% before SVT to 35.9 +/- 11.2% after 90 minutes, which is significant Figure 4.

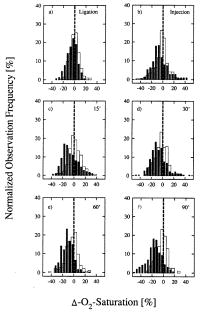

The fact that repeated measurements were collected at 48 identical locations in each animal allowed us to study oxygenation changes at these spots during the course of the experiment. For data evaluation, control HbSO2 values were subtracted from values sampled at given time points after SVT, and frequency histograms were calculated. The histograms display a gaussian distribution, with a mean change of 0.01 +/- 8.3% after ligation in group A (ie, no change; Figure 5a, white bars) and a minor - 2.8 +/- 9.7% reduction at the end of the experiment (Figure 5f, white bars). In group B, however, a - 4.8 +/- 9.3% shift of the distribution to the left (ie, toward lower saturation values) was already found after SSS ligation (Figure 5a, black bars; P < .001 versus group A). With progressing time, the shift became more evident, reaching a mean reduction of - 16.1 +/- 13.2% at the end of the experiment (Figure 5f, black bars).
There were no differences between the distributions of lCBF and local HbSO2 in groups A and B before induction of SVT Figure 6a and Figure 7a. After SSS ligation, HbSO2 decreased only in group B, although rCBF was still unchanged Figure 7b. With progressing time after SVT, rCBF decreased together with regional HbSO2 in group B but not in group A Figure 7. At the conclusion of the experiment, 90 minutes after SVT induction, the number of measuring points with low CBF (< 20 to 30 LD units) and low local HbSO2 (< 30 to 40%) had substantially increased (Figure 6b, left), whereas the distributions in group A did not change (Figure 6b, right).
A detailed analysis of the sequence of events after SVT induction is possible with an adequate spatial and temporal resolution only if individual cases are analyzed. Figure 8 illustrates the changes of lCBF and HbSO2 immediately after SSS ligation in a case with subsequent thrombosis progression. As easily recognized, lCBF is reduced only in the immediate vicinity of the underlying vein, whereas more distant regions even display moderate hyperperfusion Figure 8a. Similar perfusion patterns were often observed. Fluorescence angiography regularly revealed complex collateral pathways at these locations, surprisingly often associated with flow reversal. With the current techniques, however, it was not possible to link these angiographic data with the LD scan information in a statistically satisfactory way. Respective studies are under way. The findings may explain why median flow values remained unaffected at this time point. HbSO2, on the other hand, was moderately reduced in the whole region Figure 8b. Interestingly, the lowest readings were seen in the more proximal venous sections, which may serve as another indication that flow reversal occurred.
Taken together, the data are consistent with a severe disturbance of the microcirculation including flow reversal, which explains the unchanged or moderately reduced median rCBF, whereas saturation was reduced at a very early point in time. Only later, after the thrombus had expanded, was the reduction of rCBF as prominent as the saturation decrease. Figure 9 compares flow and saturation data 90 minutes after SVT induction in the most severe case. Here, HbSO2 has reached ischemic values at some locations. lCBF, on the other hand, was low but clearly remained above the biological zero. Although the large veins were completely occluded, some collateral flow appeared preserved. It should be stressed that in most other cases and even in most individual scanning points HbSO2 did not decrease that far Figure 6.
Histologically thrombotic material was routinely found in the SSS, and thrombosed intraparenchymal vessels are typical for group B. The sham-operated rats showed no histological change at all. The rats from group A revealed no or mild histological change such as slight brain edema. Bilateral parasagittal infarction is characteristic for group B, and such alterations already have been reported for this model. [2] Petechial hemorrhage around the dilated capillaries was also observed in some animals, but massive hemorrhages and widespread extravasations of Evans blue were not apparent.
Research on cerebral venous circulation disturbances has been limited partly by the lack of animal models that produce consistent venous infarction. There have been several reports on SVT using various animal models. [1-7,9,21] Dogs, cats, pigs, and rats have been used, involving direct SSS occlusion using ligation, ballooning, coagulation, and/or injection of obstructing or thrombotic materials as obstructing techniques. Those models implying a true thrombotic process are more similar to human SVT, and therefore are to be preferred. [2,7] A minor problem associated with the rat model used in the present study is the immediate decrease of systemic blood pressure after injection of the kaolin-cephalin suspension. This, however, appears benign, is rapidly reversible, and is not responsible for brain damage from SVT. [2,7] Both groups A (without brain damage) and B (with brain damage) had comparable decreases of systemic blood pressure in this study, although the outcome from SVT was different.
The present study has methodological advantages over previous ones because the use of a scanning technique [14-17] for the assessment of lCBF and local HbSO sub 2 allows a detailed analysis of the spatial heterogeneity. CBF assessment by conventional single-spot LD is highly dependent on the localization of the LD probe because of its small spatial resolution (1 to 2 mm3). The accuracy of repeated scans using a stepping motor-driven micromanipulator has been excellent. [14,16,17] The analysis of LD data by frequency histograms and cortical mapping represents a useful tool, providing information on the regional CBF variability that is not available from a single stationary probe. In a recent simulation study, [17] the number of measurements necessary to assess rCBF by local LD recording has been evaluated, revealing that sample sizes above n = 25 are necessary to obtain reliable information on rCBF, a number well surpassed in the present experimental paradigm. Here, the scanning technique was expanded by including HbSO2 assessment from the same locations, a procedure made possible by the similar sampling volumes of both techniques.
There were five major findings in this study. (1) Only animals with the extension of a thrombus from the SSS to the cortical veins after induction of SVT had brain damage. (2) In these cases, regional HbSO2 as well as rCBF decreased after the induction of SVT. (3) The reduction of HbSO2 preceded the flow decrease. (4) A partially preserved flow in individual cortical locations accompanies a critically depressed HbSO2 at that site. (5) Blood pressure of the animals tolerating SVT without brain damage was higher than that of the animals with brain damage. Of these, observations 3 through 5 are quite novel.
Some authors have already reported a decrease of CBF after SVT below the ischemic threshold that occurs only if the thrombus expands from the sinus into bridging and cortical veins. [4,6,7,21] Ungersbock et al [7] observed a significant decrease of lCBF after ligation of the SSS in the same rat SVT model. Our results are in general agreement with these previous reports. We, in addition, found a significant reduction of local and regional HbSO2. The sole ligation of the SSS does not cause brain damage but would be expected to cause changes of local hemodynamics. Interestingly enough, we found that the reduction of HbSO2 seemed to precede the flow decrease. At this early time point, the two outcome groups--with and without subsequent brain damage--could already be separated, as evidenced by regional HbSO sub 2. Individual variations in the cerebral venous drainage are currently considered to be the most likely reason. Our data underline that at a high spatial resolution, abovethreshold flow values may accompany critically low oxygen saturation values. Flow, therefore, in conditions of venous obstruction, appears to be a less sensitive parameter, which is not surprising, since drainage of desaturated blood via complex collateral pathways, although nonnutritive, is also detected as ``flow.''
One might argue, on the other hand, that the apparent superior sensitivity of HbSO2 is a technological artifact rather than a physiological difference. A technological problem might arise from the fact that the laser flowmeter used monitors red cell flux at 780 nm, which is not an isosbestic point but is close to the 760-nm peak for deoxyhemoglobin. Because HbSO2 changes, and cerebral blood volume is expected to increase, the flow monitor might be inaccurate under these conditions and fail to detect a true flow decrease. The flowmeter, however, calculates red cell flux from red cell velocity and from the ratio of moving versus nonmoving structures (``volume fraction''). Therefore, red cell velocity, which is determined only from the Doppler shift and not from absolute signal intensities, should decrease if red cell flux would be decreased under conditions of a stable or even increased [7] volume fraction signal. If HbSO2 data are plotted against red cell velocity in a manner similar to the approach chosen in Figure 6 for HbSO2 and lCBF, the decline of HbSO2 again occurs earlier than the velocity decrease (data not shown). Since volume fraction does not change or increases slightly after sinus ligation, [7] our data support the contention that a true physiological difference is monitored.
Another technological pitfall might arise from the microspectrophotometric technique used to assess HbSO2. Although the technique has been used in various organs [18] including the brain, [19] an exact validation for brain tissue (eg, using conditions of varied total hemoglobin together with altered oxygenation) is not available so far. Changes in light scattering, CSF turbidity, or effects of chromophores other than hemoglobin might violate some of the assumptions in the theory of measurement and thereby add unknown error. These possible errors, however, will only affect the absolute HbSO2 readings or the variability of the results but not basic findings such as reductions of HbSO2 below the control level. The decrease of HbSO2 especially, together with the low lCBF readings after SVT found in group B Figure 6d but not in group A, cannot be attributed to methodological errors that would be expected to occur in both groups. Similarly, the observation that HbSO2 decreased after SSS ligation in group B Figure 7b cannot be explained by insufficient validation but must be considered a true phenomenon. Moreover, the absolute readings collected by EMPHO under control conditions are very well comparable to data sampled with other techniques: with a microreflectometric system, Watanabe et al [22] found hemoglobin saturation over capillary regions at values of 50% to 70%, which changed depending on hematocrit and inspired oxygen concentrations. Venous oxygen saturation as assessed by microspectrophotometry in frozen sections showed a high regional heterogeneity, with mean values of 51.8% or 55.7% in anterior or posterior cortex of conscious rats. [23] The coefficient of variation (SD/mean x 100) was 23, which compares well with a value of 19 calculated for the present study. With a three-wavelength spectrophotometric method, Narita et al [24] obtained a regional HbSO2 of approximately 55%. A minor portion of the HbSO2 readings--and likewise of LD measurements--will derive from arteries or arterioles. The degree of this contribution, however, remains small, since the microcirculation and the venous system contain more than 80% of cerebral blood volume and therefore also contribute to a similar degree to HbSO2 recordings. Because it currently is not possible to evaluate the exact contribution of individual vessel segments to the local HbSO sub 2 or lCBF readings, we prefer to either study correlations between both parameters without reference to the underlying anatomy, as in Figure 6, or express the medians of locally obtained data as regional HbSO2 or rCBF, respectively.
Recently, Frerichs et al [2] demonstrated by electrical tissue impedance the rapid development of cytotoxic edema after SVT, more rapid than expected after cerebral ischemia where edema development can progress only after recirculation or in the penumbra. In SVT, the uninterrupted arterial blood supply is the basis for a net influx of water and for early intracranial pressure changes. Our data illustrate that, in addition, SVT also has a metabolic component: flow reversal and the decreased velocity in the microcirculation [7] go along with extended residence times of individual red cells and hence a reduction of the microvascular HbSO2. It should be emphasized that the spread of cerebral thrombosis apart from the known macrovascular events involves changes in the microcirculation that may determine outcome of individual cases. In most animals with thrombosis progression, HbSO2 decreased to critically low values in a fraction of the 48 scanning points relatively early after SVT induction and remained at that level Figure 7 and Figure 8. Tissue function will suffer only if HbSO2 drops below a critical threshold at which the tissue oxygen supply cannot be maintained via an increased extraction fraction. Taken together, the cerebral cortex after SVT appears to be a good model for a penumbralike situation with a critical reduction of flow and oxygen supply, which may be observed and evaluated considerably longer than respective cases after arterial occlusion. It must remain a goal for future studies to establish critical thresholds of lCBF and HbSO2 by correlating local histological damage with local hemodynamic data.
Another significant pathophysiological component, which may vary in individual animals, is cerebral perfusion pressure. Arterial blood pressure of animals without brain damage in group A was approximately 15% higher than that of sham-operated rats and animals with brain damage. This observation confirms earlier data. [7] Especially at critical levels of perfusion pressure, the brain is considered to be sensitive to small changes of arterial, venous, or intracranial pressure. Wagner and Traystman [25] stressed that in their experiments with variations of venous pressure only animals with a cerebral perfusion pressure lower than 60 mm Hg showed a reduced hemispheric CBF. Similar observations on the effect of varied venous pressures on cerebral autoregulation have been reported by McPherson et al. [26] Because the rats in the present experiments were moderately hypercapnic and slightly hypotensive because of the chosen anesthetic regimen, small increases in venous pressure may decrease CBF more in this model than in normocapnic, normotensive patients. This cautionary point should be made before far-reaching conclusions for the clinical setting are drawn.
Still, the question remains why in the present study did blood pressure increase only in subgroup A (animals without brain damage). A better understanding of this intriguing mechanism may open an additional therapeutic window for SVT. In patients, cerebral perfusion pressure should be carefully monitored, and any reduction should be treated. A moderate hypervolume/hypertension therapy as suggested for the treatment of vasospasm [27] can be supported only if anticoagulation has been successfully initiated before. Further studies are necessary to examine whether SVT patients could benefit from an increased cardiac output as shown for focal cerebral ischemia. [28]
In conclusion, a given fraction of experimental animals and probably also SVT patients present with an acute extension of the thrombosis from the SSS into cortical veins. This subgroup has an unsatisfactory outcome and a high risk of infarcts. The kinetics of infarct development are different from arterial obstruction and resemble those seen in the periinfarct penumbra zone. Changes of rCBF, angiographic demonstrations of thrombosis growth, and occurring most early, decreases of regional cortical HbSO2 can be linked closely to outcome after SVT. The assessment of these parameters could be useful in a clinical setting, using near-infrared spectroscopy, [12] for example, to monitor early changes and to detect patients at risk after SVT.
The authors would sincerely like to thank Professor Karl Ungersbock at Wien University for his introduction to the experimental model, Dr Klaus Frank from BGT (Uberlingen/Germany) for the generous permission to use EMPHO, Monika Westenhuber for the excellent secretarial assistance, and Michael Mahlzahn, Laszlo Kopacz, and Andrea Schollmayer for the flawless technical help and support.
1. Cervos-Navarro J, Kannuki S, Matsumoto K. Neuropathological changes following occlusion of the superior sagittal sinus and cerebral veins in the cat. Neuropathol Appl Neurobiol. 1994;20:122-129. Library Holdings [Context Link]
2. Frerichs KU, Deckert M, Kempski O, Schurer L, Einhaupl K, Baethmann A. Cerebral sinus and venous thrombosis in rats induces long-term deficits in brain function and morphology: evidence for a cytotoxic genesis. J Cereb Blood Flow Metab. 1994;14:289-300. Library Holdings [Context Link]
3. Fries G, Wallenfang T, Hennen J, Velthaus M, Heimann A, Schild H, Perneczky A, Kempski O. Occlusion of the pig superior sagittal sinus, bridging and cortical veins: multistep evolution of sinus-vein thrombosis. J Neurosurg. 1992;77:127-133. Library Holdings [Context Link]
4. Gotoh M, Ohmoto T, Kuyama H. Experimental study of venous circulatory disturbance by dural sinus occlusion. Acta Neurochir (Wien). 1993;124:120-126. Library Holdings [Context Link]
5. Nakase H, Kakizaki T, Miyamoto K, Hiramatsu K, Sakaki T. Use of local cerebral blood flow monitoring to predict the brain damage after disturbance to the venous circulation: cortical vein occlusion model by photochemical dye. Neurosurgery. 1995;37:280-286. Ovid Full Text Library Holdings [Context Link]
6. Takeshima T, Miyamoto K, Okumura Y, Tominaga M, Tsujimoto S, Sakaki T. Experimental study of local cerebral blood flow in cerebral venous occlusion. In: Tomita M, Mchedlishvili G, Rosenblum, Heiss W-D, Fukuuchi Y, eds. Microcirculatory Stasis in the Brain. Amsterdam, Netherlands: Elsevier Science; 1993:441-449. [Context Link]
7. Ungersbock K, Heimann A, Kempski O. Cerebral blood flow alterations in a rat model of cerebral sinus thrombosis. Stroke. 1993;24:563-570. Library Holdings [Context Link]
8. Einhaupl KM, Villringer A, Meister W, Mehrain S, Garner C, Pellkofer M, Haberl R, Pfister HW, Schmiedek P. Heparin treatment in sinus venous thrombosis. Lancet. 1991;338:597-600. Full Text Library Holdings [Context Link]
9. Beck DJK, Russell DS. Experiments on thrombosis of the superior longitudinal sinus. J Neurosurg. 1946;3:337-347. [Context Link]
10. Beck T, Krieglstein J. Cerebral circulation, metabolism, and blood-brain barrier of rats in hypocapnic hypoxia. Am J Physiol. 1987;252:H504-H512. Library Holdings [Context Link]
11. Friedland RP, Iadecola C. A centennial reexamination of `On the regulation of the blood-supply of the brain.' Neurology. 1991;41:10-14. [Context Link]
12. McCormick PW, Stewart M, Goetting MG, Balakrishnan G. Regional cerebrovascular oxygen saturation measured by optical spectroscopy in humans. Stroke. 1991;22:596-602. Library Holdings [Context Link]
13. Wei HM, Chen WY, Sinha AK, Weiss HR. Effect of cervical sympathectomy and hypoxia on the heterogeneity of O sub 2 saturation of small cerebrocortical veins. J Cereb Blood Flow Metab. 1993;13:269-275. Library Holdings [Context Link]
14. Heimann A, Kroppenstedt S, Ulrich P, Kempski OS. Cerebral blood flow autoregulation during hypobaric hypotension assessed by laser Doppler scanning. J Cereb Blood Flow Metab. 1994;14:1100-1105. Library Holdings [Context Link]
15. Ulrich P, Kroppenstedt S, Marchand C, Heimann A, Kempski O. Reserve capacity tested by acetazolamide response of cortical microflow up to six weeks after permanent bilateral occlusion of the common carotid artery of the rat. J Cereb Blood Flow Metab. 1993;13(suppl 1):S210. Abstract. [Context Link]
16. Ungersbock K, Heimann A, Strecker U, Kempski O. Mapping of cerebral blood flow by laser-Doppler flowmetry. In: Tomita M, Mchedlishvili G, Rosenblum, Heiss W-D, Fukuuchi Y, eds. Microcirculatory Stasis in the Brain. Amsterdam, Netherlands: Elsevier Science; 1993:405-413. [Context Link]
17. Kempski O, Heimann A, Strecker U. On the number of measurements necessary to assess regional cerebral blood flow by local laser Doppler recordings: a simulation study with data from 45 rabbits. Int J Microcirc Clin Exp. 1995;15:37-42. Library Holdings [Context Link]
18. Hoper J, Gaab MR. Effect of arterial PCO sub 2 on local HbO sub 2 and relative Hb concentration in the human brain: a study with the Erlangen micro-lightguide spectrophotometer (EMPHO). Physiol Meas. 1994;15:107-113. Full Text Library Holdings [Context Link]
19. Frank KH, Kessler M, Appelbaum K, Dummler W. The Erlangen micro-lightguide spectrophotometer EMPHO I. Phys Med Biol. 1989;34:1883-1900. Library Holdings [Context Link]
20. Kubelka P, Munk F. Ein Beitrag zur Optik der Farbanstriche. Z Technische Physik. 1931;11a:76-77. [Context Link]
21. Sato S, Toya S, Ohtani M, Kawase T. The effect of sagittal sinus occlusion on blood-brain barrier permeability and cerebral blood flow in the dog. In: Inaba Y, Klatzo I, Spatz M, eds. Brain Edema. Berlin/Heidelberg/New York/Tokyo: Springer; 1985:235-239. [Context Link]
22. Watanabe M, Harada N, Kosaka H, Shiga T. Intravital microreflectometry of individual pial vessels and capillary region of rat. J Cereb Blood Flow Metab. 1994;14:75-84. Library Holdings [Context Link]
23. Chi OZ, Wei HM, Klein SL, Weiss HR. Effect of ketamine on heterogeneity of cerebral microregional venous O sub 2 saturation in the rat. Anesth Analg. 1994;79:860-866. Library Holdings [Context Link]
24. Narita N, Tominaga T, Koshu K, Mizoi K, Yoshimoto T. Monitoring of brain tissue haemoglobin concentration and oxygen saturation using a three wavelength spectrophotometric method. Neurol Res. 1994;16:428-432. Library Holdings [Context Link]
25. Wagner EM, Traystman RJ. Effects of cerebral venous and cerebrospinal fluid pressure on cerebral blood flow. In: Auer LM, Loew F, eds. The Cerebral Veins, an Experimental and Clinical Update. Vienna, Austria: Springer; 1983:223-230. [Context Link]
26. McPherson RW, Koehler RC, Traystman RJ. Effects of jugular venous pressure on cerebral autoregulation in dogs. Am J Physiol. 1988;255:H1516-H1524. Library Holdings [Context Link]
27. Nemoto M, Koiwa M, Kashiwaba T, Kuroda T, Houkin K, Abe H. Effects of hyperdynamic therapy on regional cerebral blood flow in patients with vasospasm after subarachnoid hemorrhage. J Cereb Blood Flow Metab. 1995;15(suppl 1):S709. Abstract. [Context Link]
28. Tranmer BI, Keller TS, Kindt GW, Archer D. Loss of cerebral regulation during cardiac output variations in focal cerebral ischemia. J Neurosurg. 1992;77:253-259. Library Holdings [Context Link]
